81000.0240

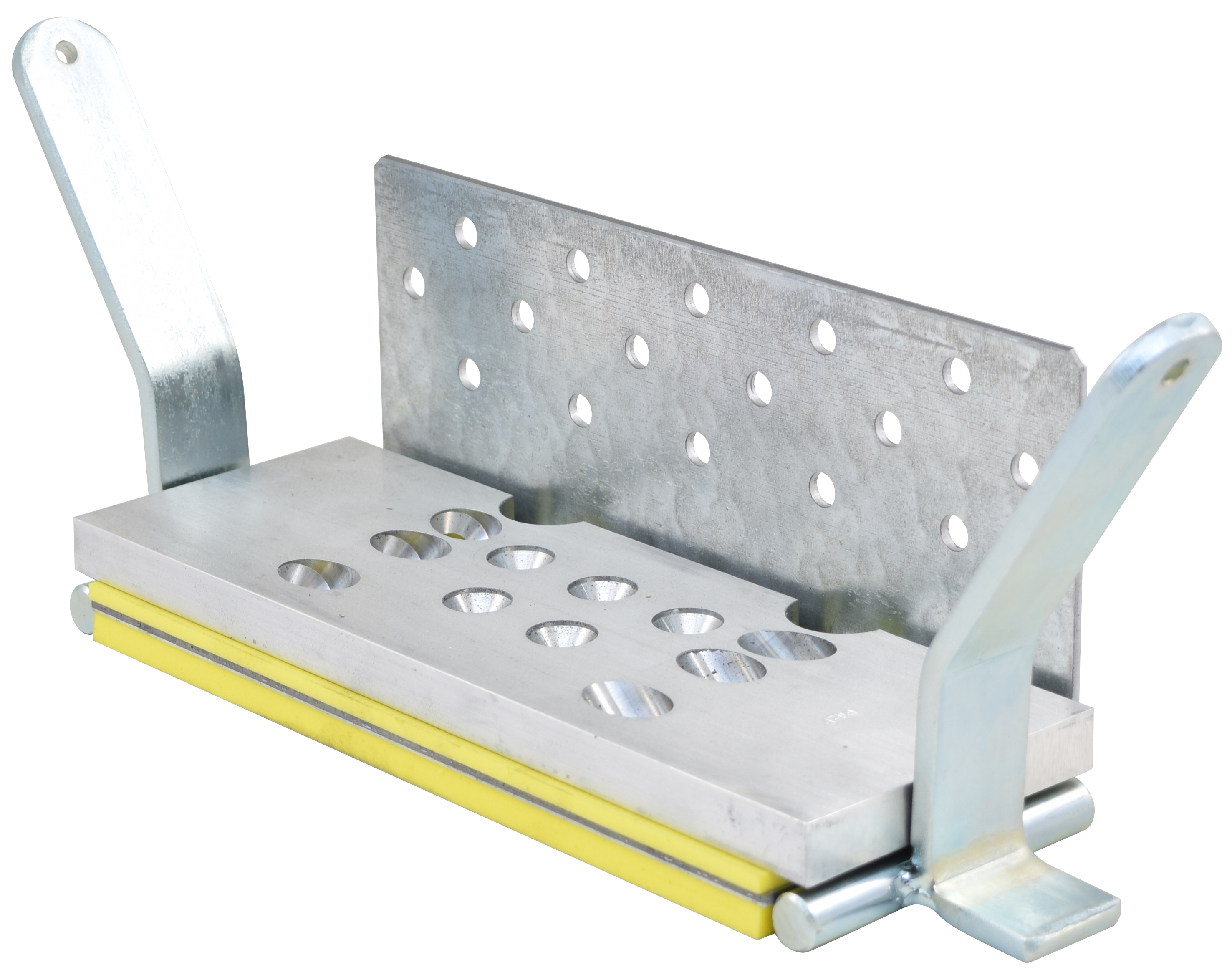

GePi Sound protection angle bracket Dimension: 240 x 100 x 100 mm
Technical specifications:
| Designation | GePi 240 |
| Dimensions L x W x H (mm) | 240 x 100 x 100 |
| Horizontal Screws | 16 Stk. - 8 x 80 mm |
| Vertical Screws | 11 Stk. 8 x 160 mm |
Product information
The GePi-Connect developed as part of the cooperation with Getzner Werkstoffe has a much higher load-bearing capacity than comparable concepts on the market. On the basis of test results the TVFA Innsbruck confirms characteristic loads up to 60 kN for the GePi 240. An additional advantage of this system is the energy dissipation without any breakage in case of an earthquake. Cyclic stresses impressively confirm the efficiency due to acting dynamic loads of the revolutionary GePi-concept.
Characteristic load-bearing capacity up to 60 kN acc. to EN 1995:2014

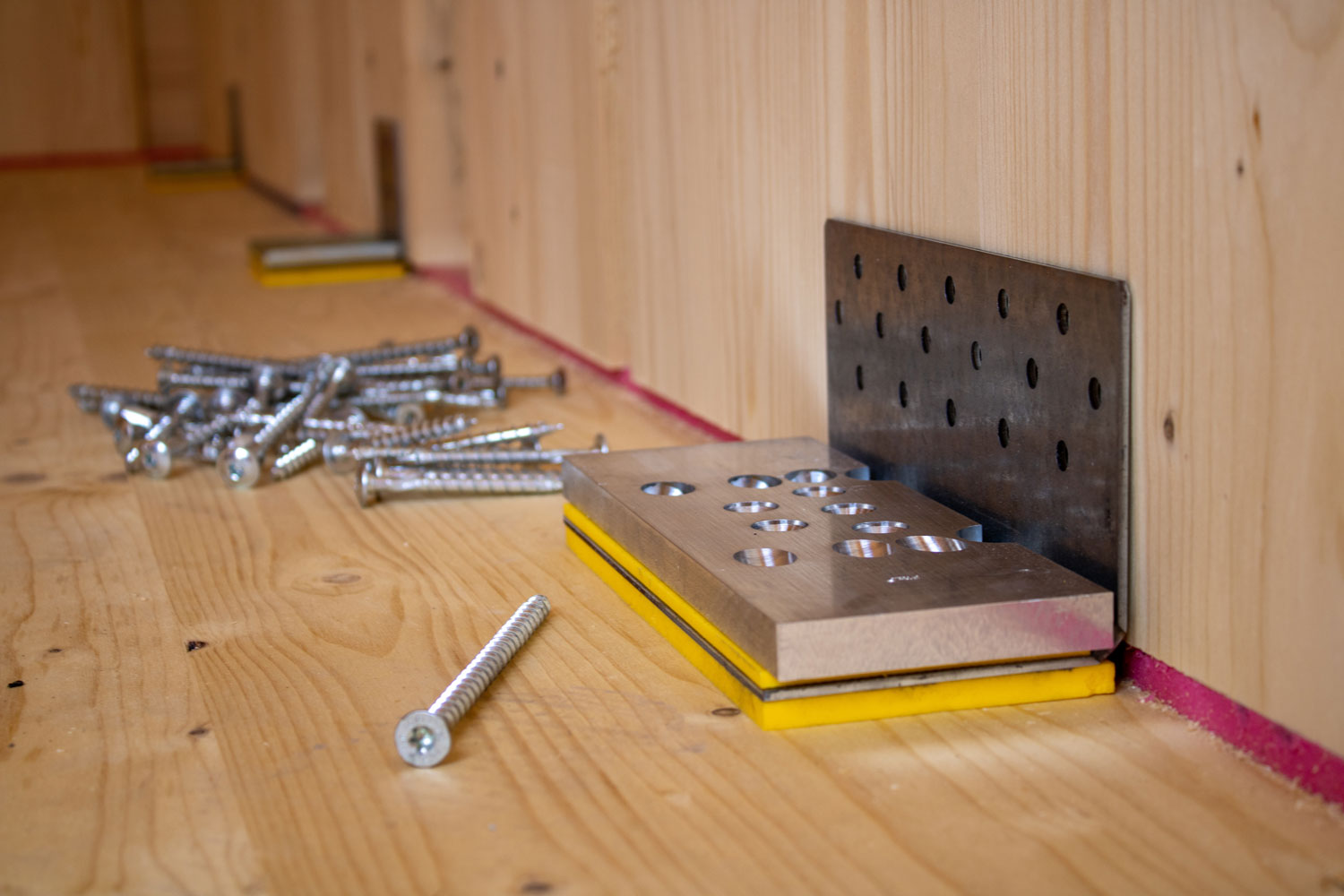

Applications
Angle brackets for shear loads with decoupled flanks
- Connection timber-timber
- High wind forces
- Earthquake loads
- Lifting forces
- Increased requirements on sound insulation
Advantages and benefits
- High shear and tensile strength
- Sound transmission decoupled connection
- Proofed sound insulation
- Resistant to earthquakes
- Reliability for engineers and users
- Approved product quality
Technical data:

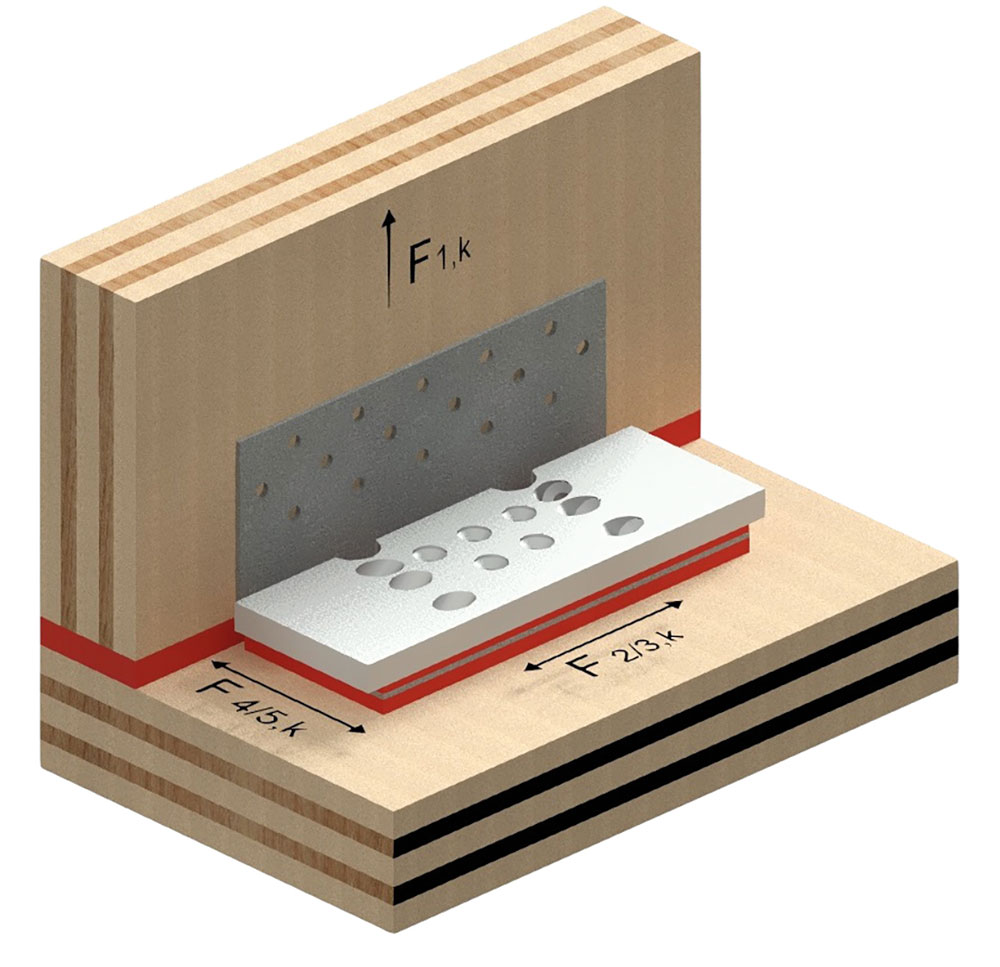

| Characteristic load capacities [kN] *) | ||
| F1,k | F2/3,k | F4/5,k |
| 54 | 62 | 55 |
* further static values can be found in our static logbook or the ETA 21/0750
Mounting instructions
Skip product gallery
Accesoires
99200.0880
Length:
80 mm
|
Material:
Steel, blue-galvanized
|
Thickness:
8 mm
Washer-head screws T-Drive partial thread
Hardened, galvanised.
