Technical specifications:
| Upper part dimensions | Ø 96 x 8 mm |
| Upper part holes | 4 St. Ø 10,5 mm |
| Lower part dimensions | 160 x 100 x 8 mm |
| Lower part holes | 4 St. Ø 13 mm |
| Lower part thread | M24 x 250 mm |
| Adjustment range | 303 - 418 mm |
| Max. characteristic load-bearing capacity in compression/tension for steel | 74,0* / 36,9* kN |
| Max. characteristic load-bearing capacity in compression/tension for timber | 152,0 / 50,0 kN |
Product information

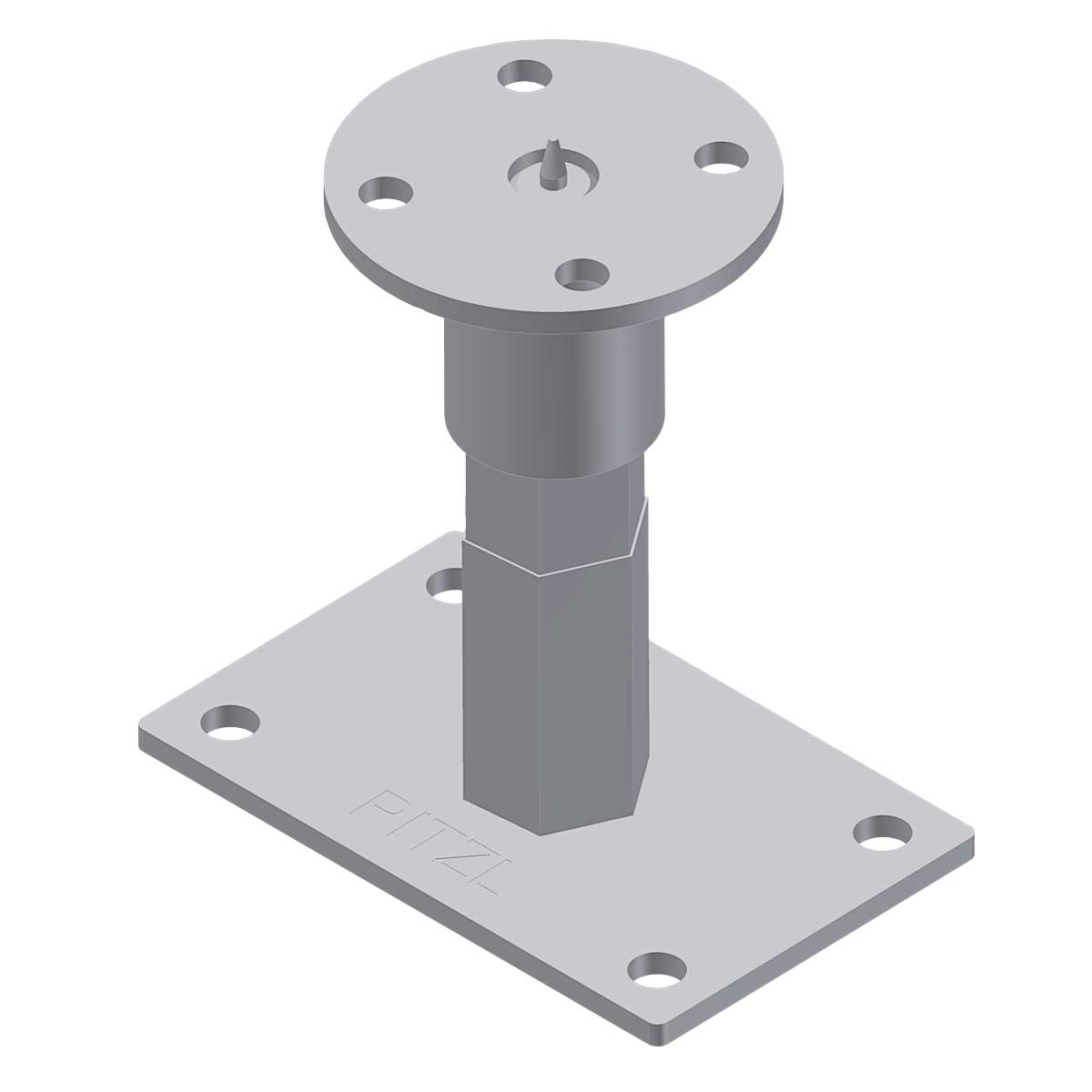

Post bases, Plug-in system Z
Turn – Click, the new innovative post base system.
With few handlings, without time-consuming and inconvenient screwing the new plug-in system allows an effi cient solution of assembly. Maximal load capacities in compression, traction and horizontal stresses are guaranteed through the optimal material thickness of the post base. A height adjustment is possible even when mounted and under heavy load.
Mounting instructions

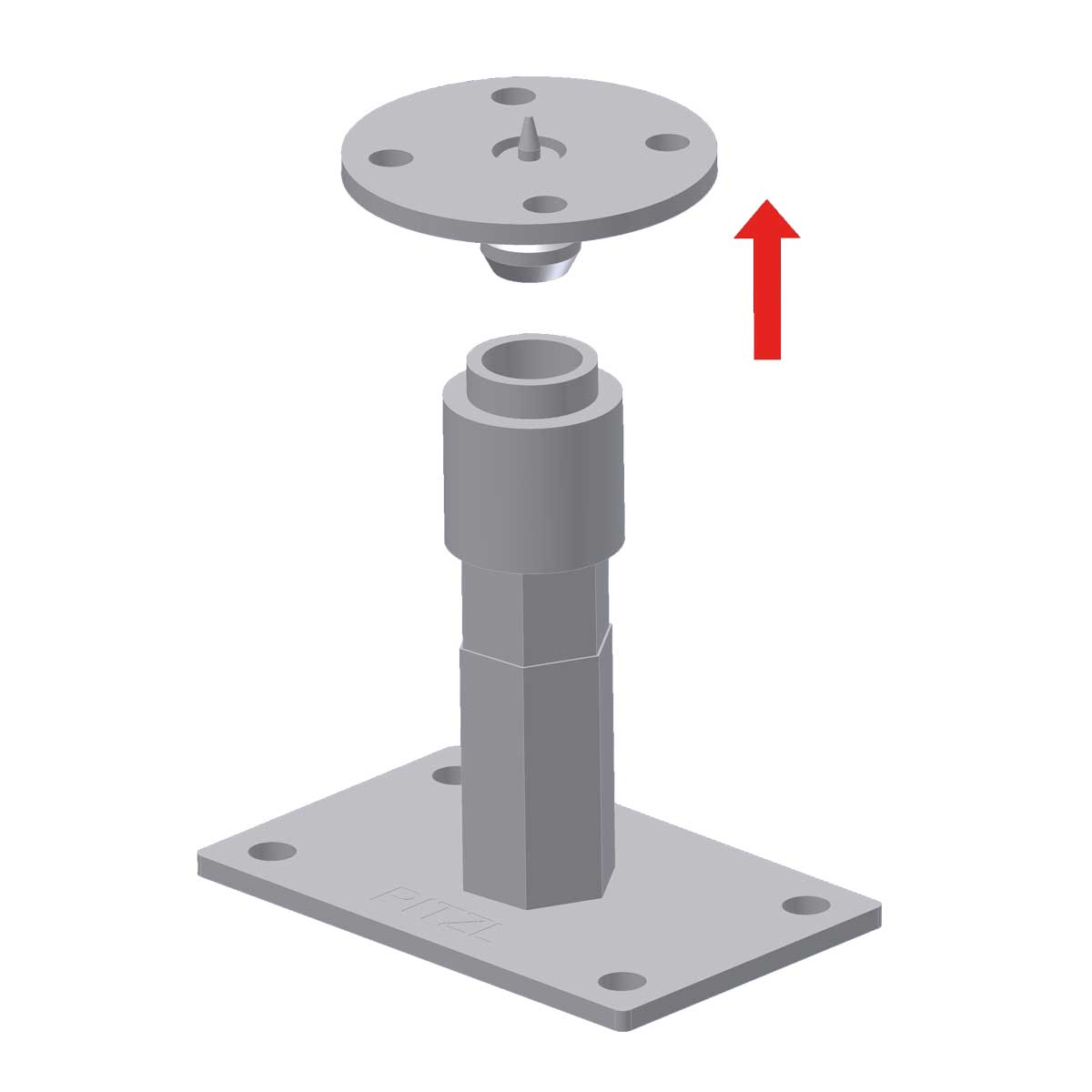

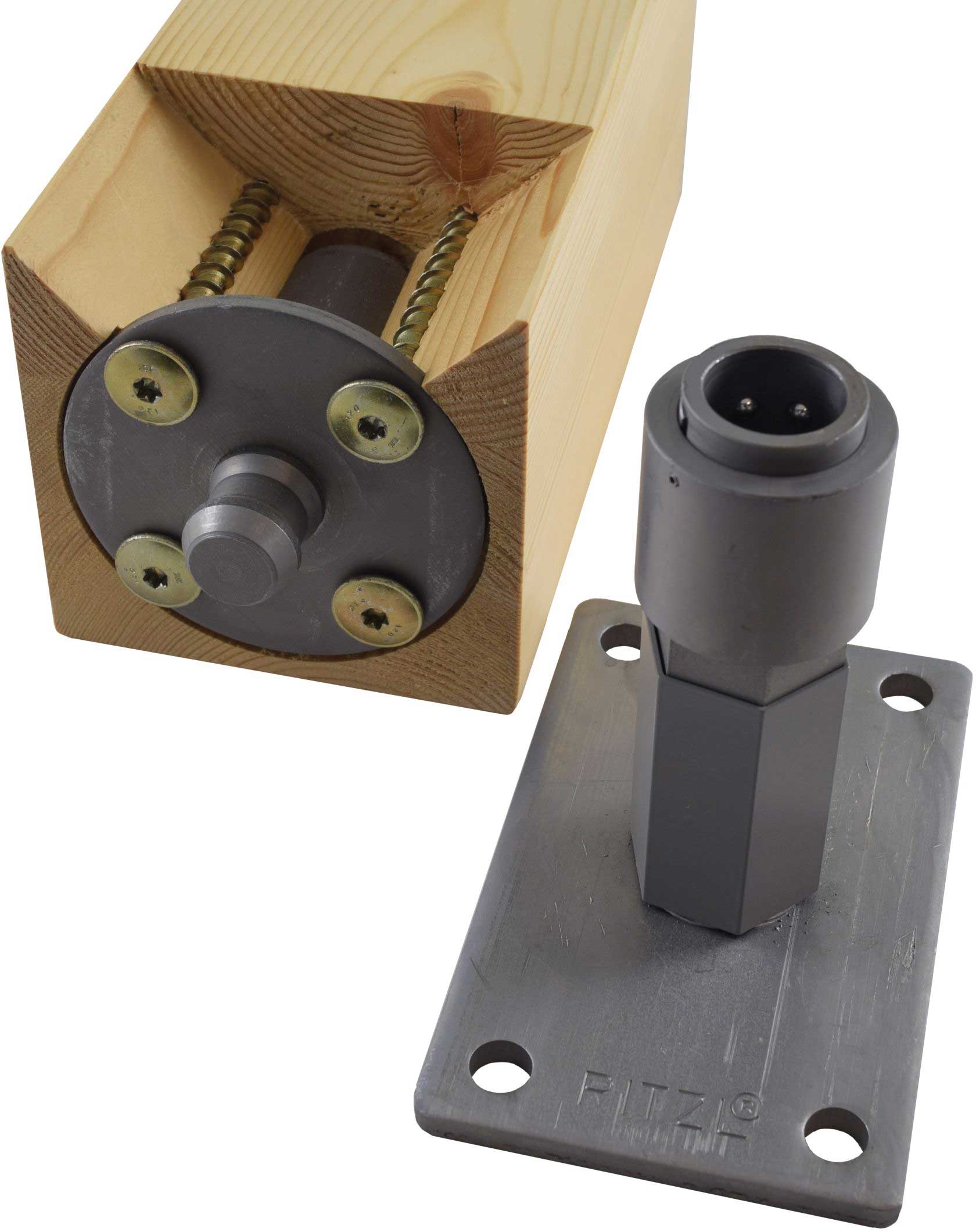

The post bracket is pre-assembled in the workshop, ensuring quick and convenient work on the construction site. Pitzl's innovative plug-in system can be locked and unlocked quickly and easily. The head plate can be separated from the rest of the post bracket in just a few simple steps.

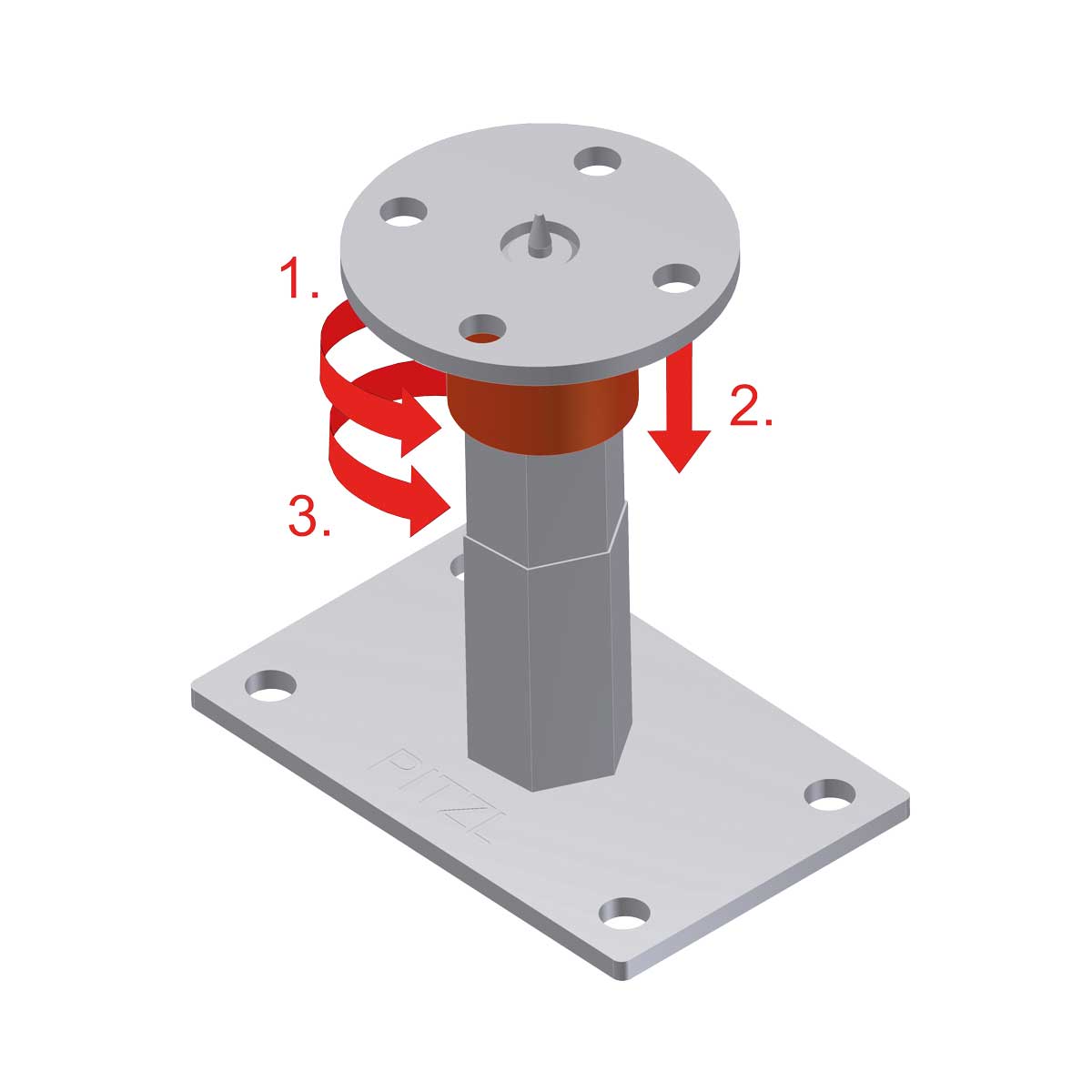

- Turn the lock counterclockwise until it stops.
- Press the lock downwards.
- Continue turning the lock counterclockwise until it stops.
Skip product gallery
Accesoires
50934.2000
Grooving cutter
These combinations are essential for a optimum milling grove. The exact milling texture for the respective connector is obtained. Therefore a quick installation of our connectors without an additional calibration is feasible.
In combination with our milling templates (page 115) you can also mill in the upper parts of our post bases.
58000.0000
Milling and assembly templates for all connector sizes of HVP series.
The flexible and easily adjustable templates enable a quick adjustment of connector width.
Following correct adjustment, milling and assembly works can begin without any further adaptation being required.
Skip product gallery
Schrauben
99110.1012
Length:
120 mm
|
Material:
A2 stainless steel, polished
|
Thickness:
10 mm
Washer-head screws T-Drive full-thread A2
Blank, glide
99210.1012
Length:
120 mm
|
Material:
Steel, blue-galvanized
|
Thickness:
10 mm
Die HECO-TOPIX-plus Tellerkopfschraube ist speziell für den konstruktiven Holzbau entwickelt. Durch den größeren Kopfdurchmesser können höhere Lasten abgetragen und Befestigungspunkte reduziert werden.
99210.1016
Length:
160 mm
|
Material:
Steel, blue-galvanized
|
Thickness:
10 mm
Washer-head screws T-Drive full-thread
Hardened, galvanised.
