10529.9990

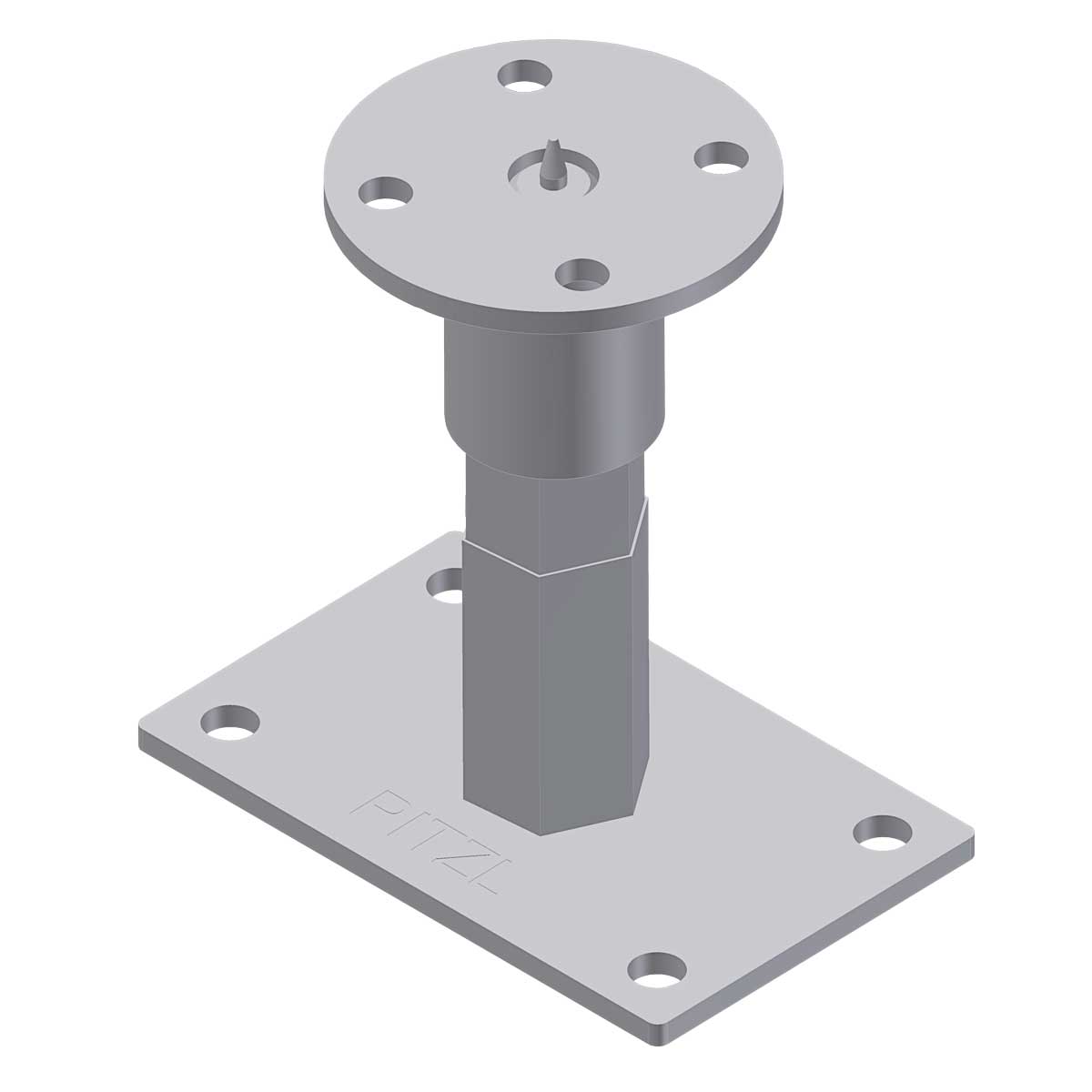

Post base plug-in system Z with thread M24 for screw-in foundations Adjustment range: 201 - 316 mm
Technical specifications:
| Installation height mm | 201 - 316 |
| Bottom plate mm | 140 x 189 x 6 |
| M 24 thread at the bottom | 150 |
| M 24 thread at the top | - |
| Upper plate mm | Ø 96 x 8 |
| Bottom hole: 11 x 60 mm slotted hole | 4 |
| Top hole | 4x Ø 10,5 mm |
Product information
Post bases, Plug-in system Z
Turn – Click, the new innovative post base system.
With few handlings, without time-consuming and inconvenient screwing the new plug-in system allows an effi cient solution of assembly. Maximal load capacities in compression, traction and horizontal stresses are guaranteed through the optimal material thickness of the post base. A height adjustment is possible even when mounted and under heavy load.

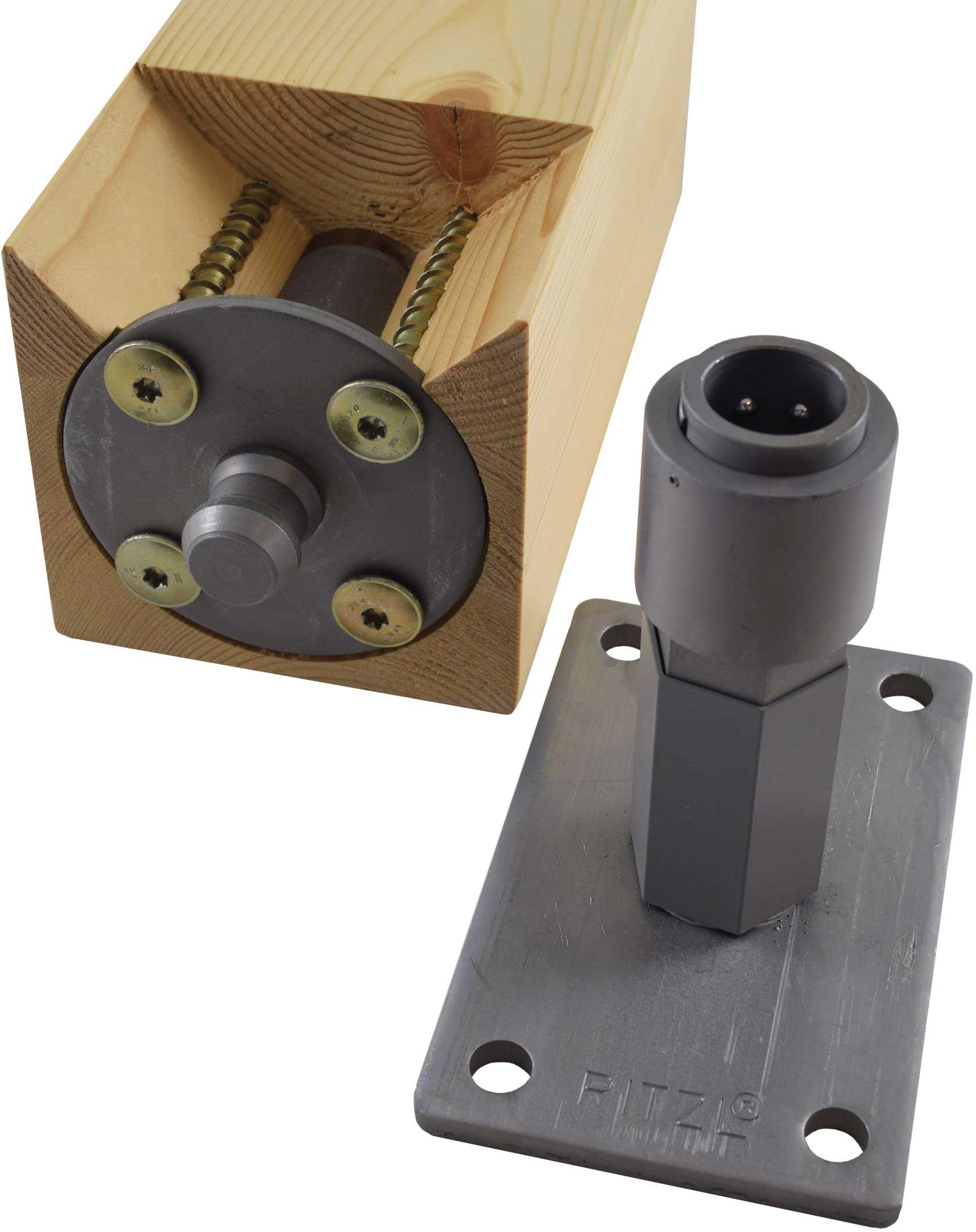

We offer the manufacturing industries of screw-in foundations the opportunity to execute timber connections with high-quality post bases. The PTP-Series is designed to absorb vertical and horizontal stresses as well as lift-off forces.
A height adjustment is possible even when mounted and under heavy load.
Mounting instructions
Montagehinweis

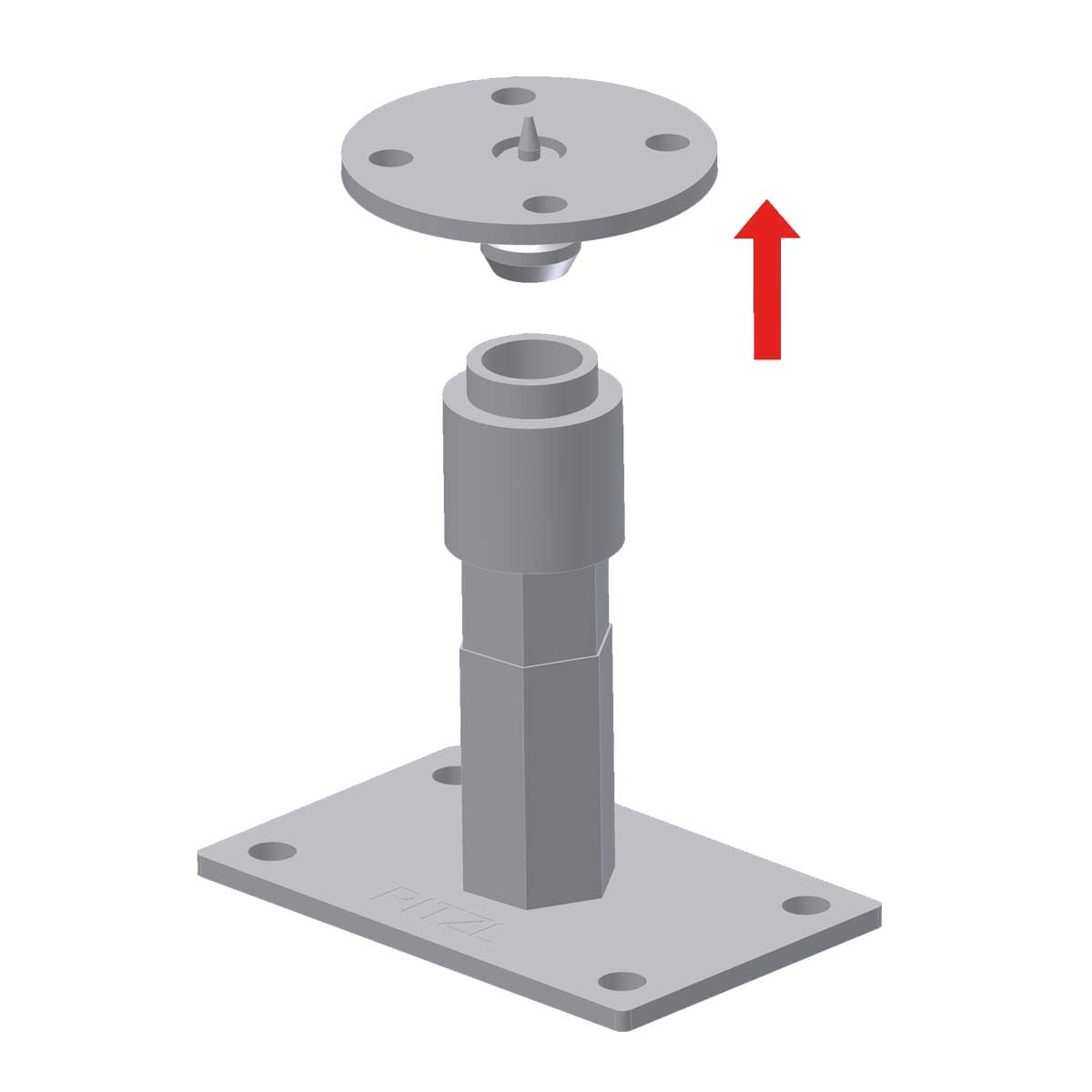

Die Vormontage des Pfostenträgers wird schon in der Werkstatt durchgeführt und sorgt für schnelles und komfortables Arbeiten auf der Baustelle. Das innovative Stecksystem von Pitzl kann problemlos und schnell ver- und entriegelt werden. Mit nur wenigen Handgriffen ist so die Kopfplatte vom restlichen Pfostenträger getrennt.

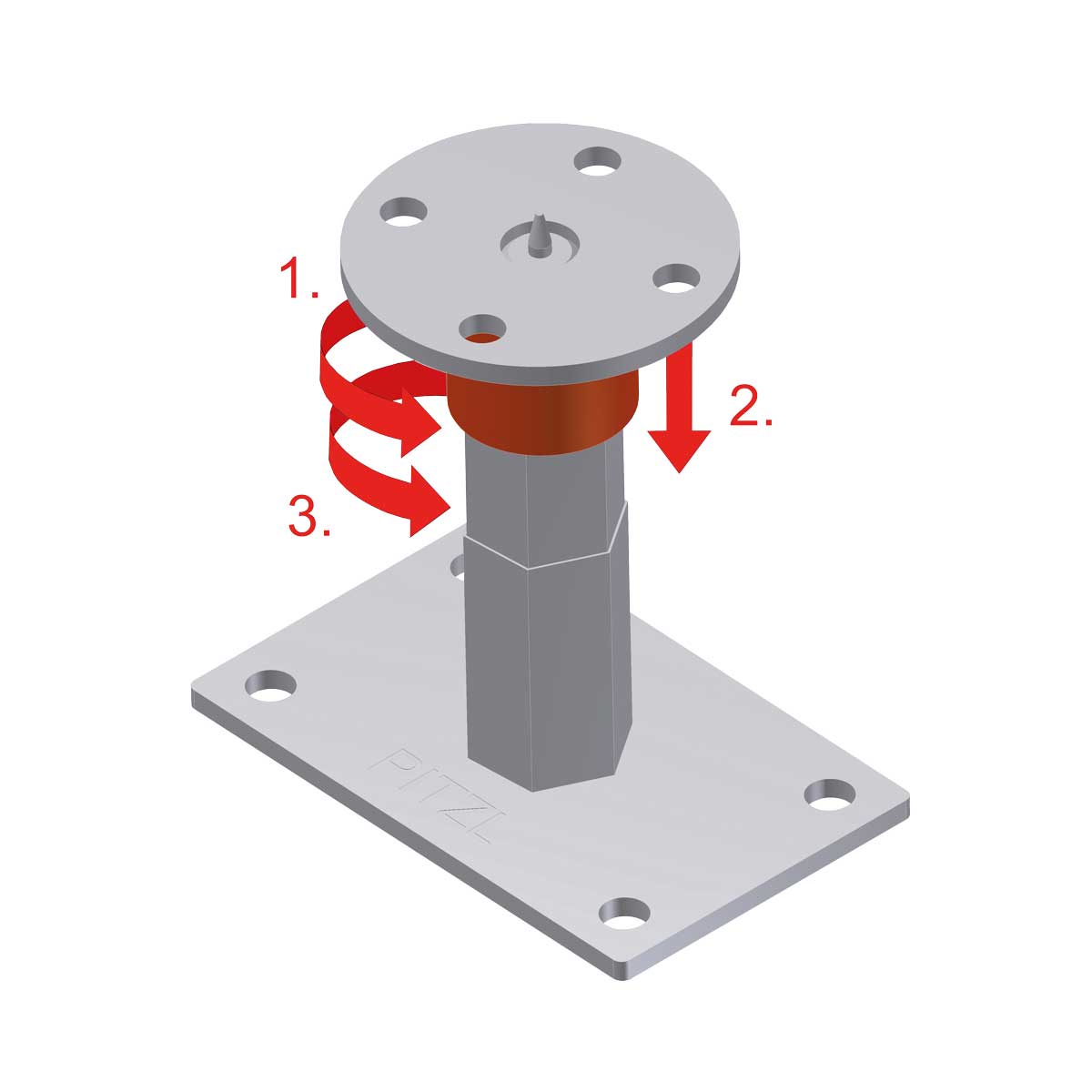

1. Verschluss gegen den Uhrzeigersinn bis Anschlag drehen.
2. Verschluss nach unten drücken.
3. Verschluss bis Anschlag gegen den Uhrzeigersinn weiter drehen.
