Technical specifications:
| Height | 30 mm |
| Width | 180 mm |
| Depth | 26 mm |
| Rated value | ca. 11,5 kN |
| Drilling | 20x Ø 4,7 mm |
Product information

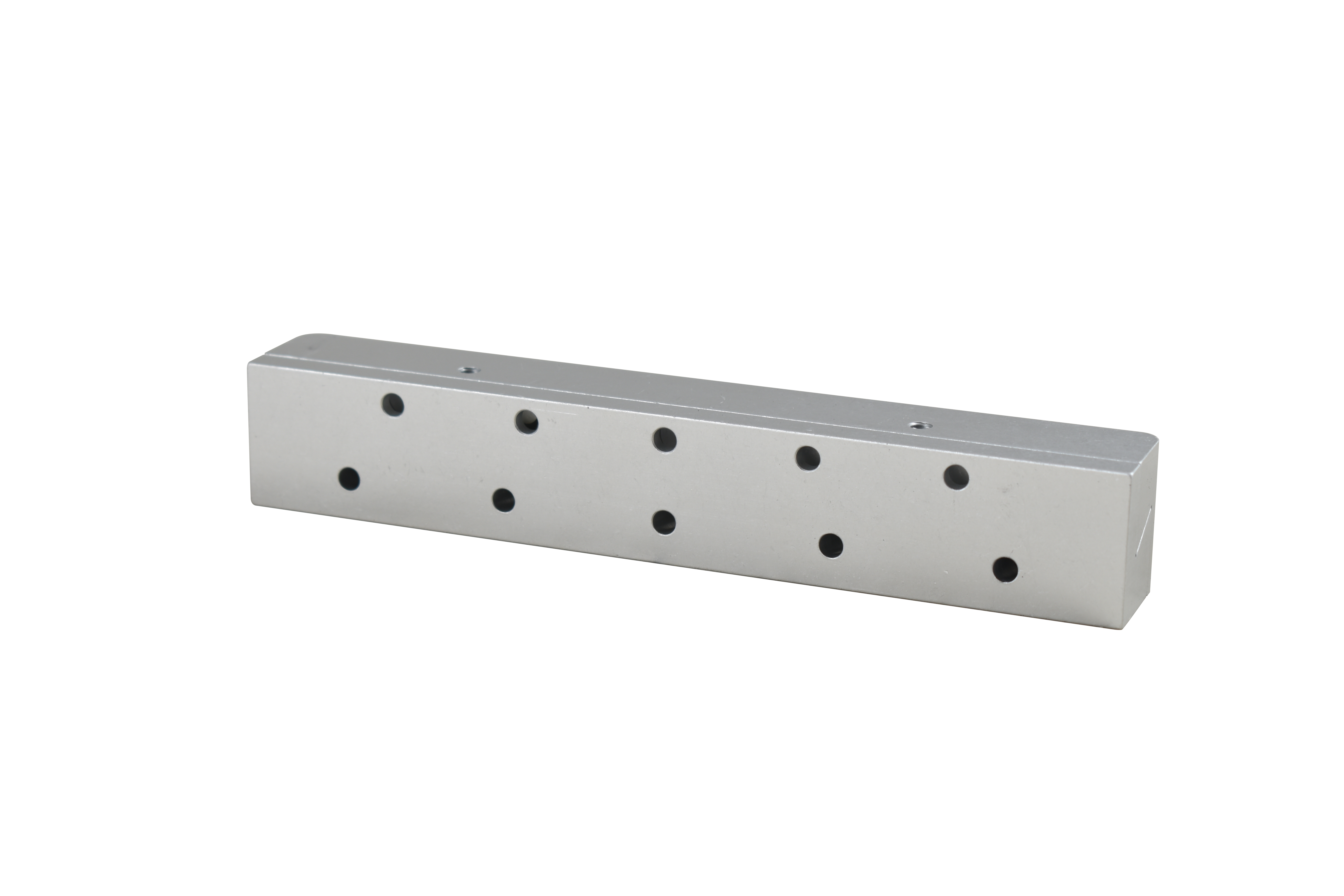

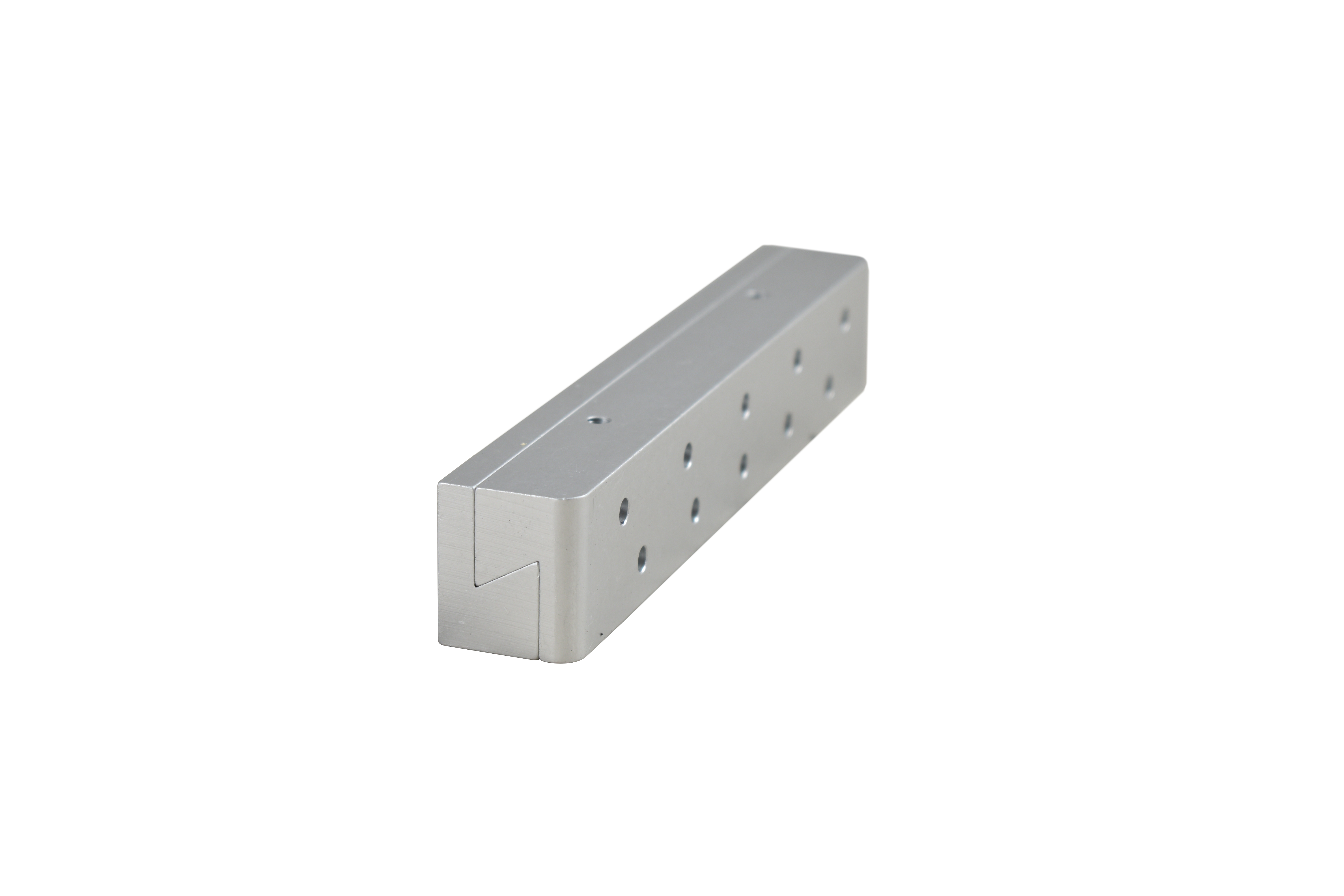

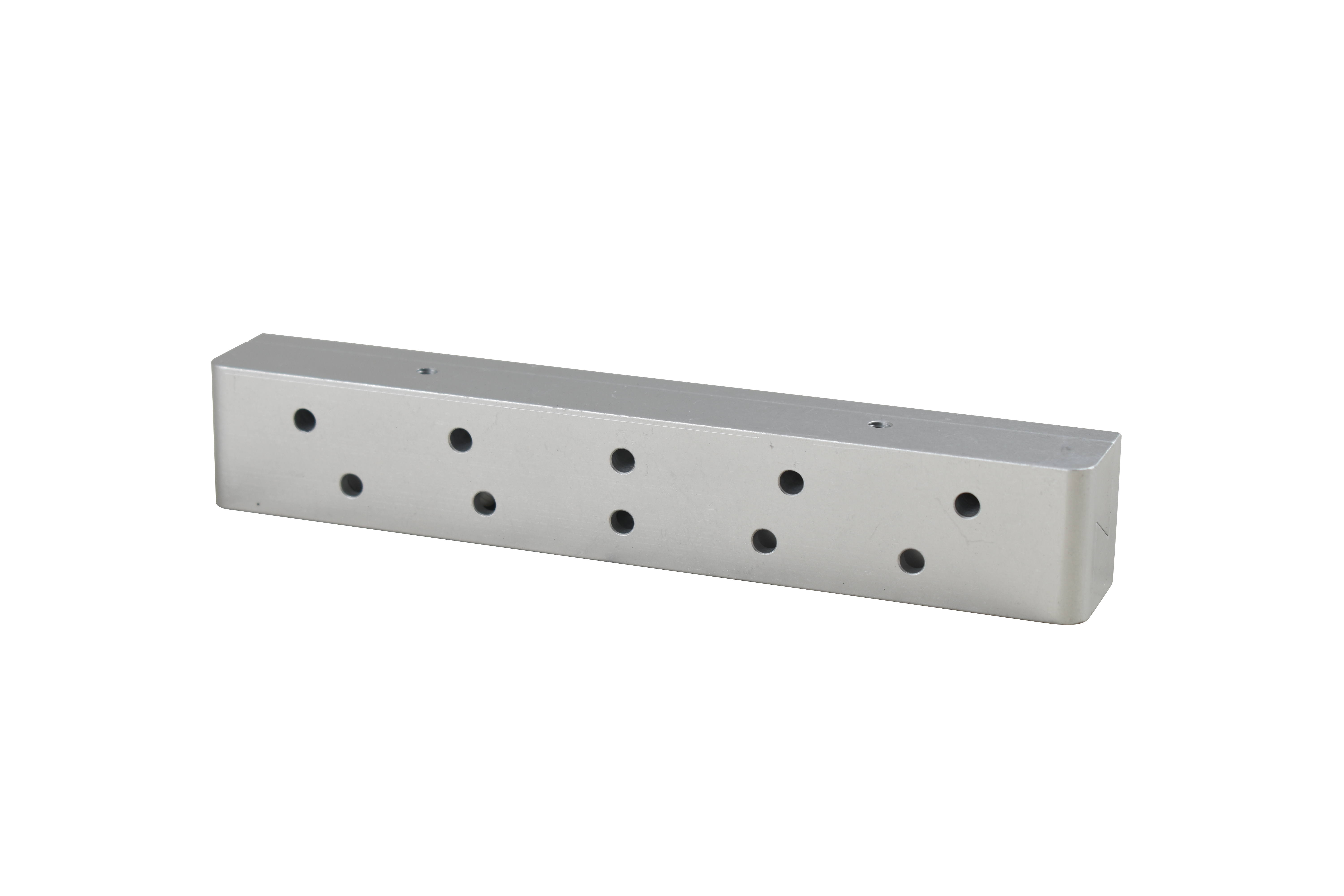

Stairs tread connector - Connectors with multiple applications for staircase construction. Elegant visual design and high load-carrying capacities provide a clean and functional connecting option for the precise and fast assembly of wooden steps. A countersunk head screw DIN 7991 M5 x 25 mm is included in the scope of delivery.
Shear failure must be verified. Design case ‘short’ for stairs and stair landings.
