88440.1000

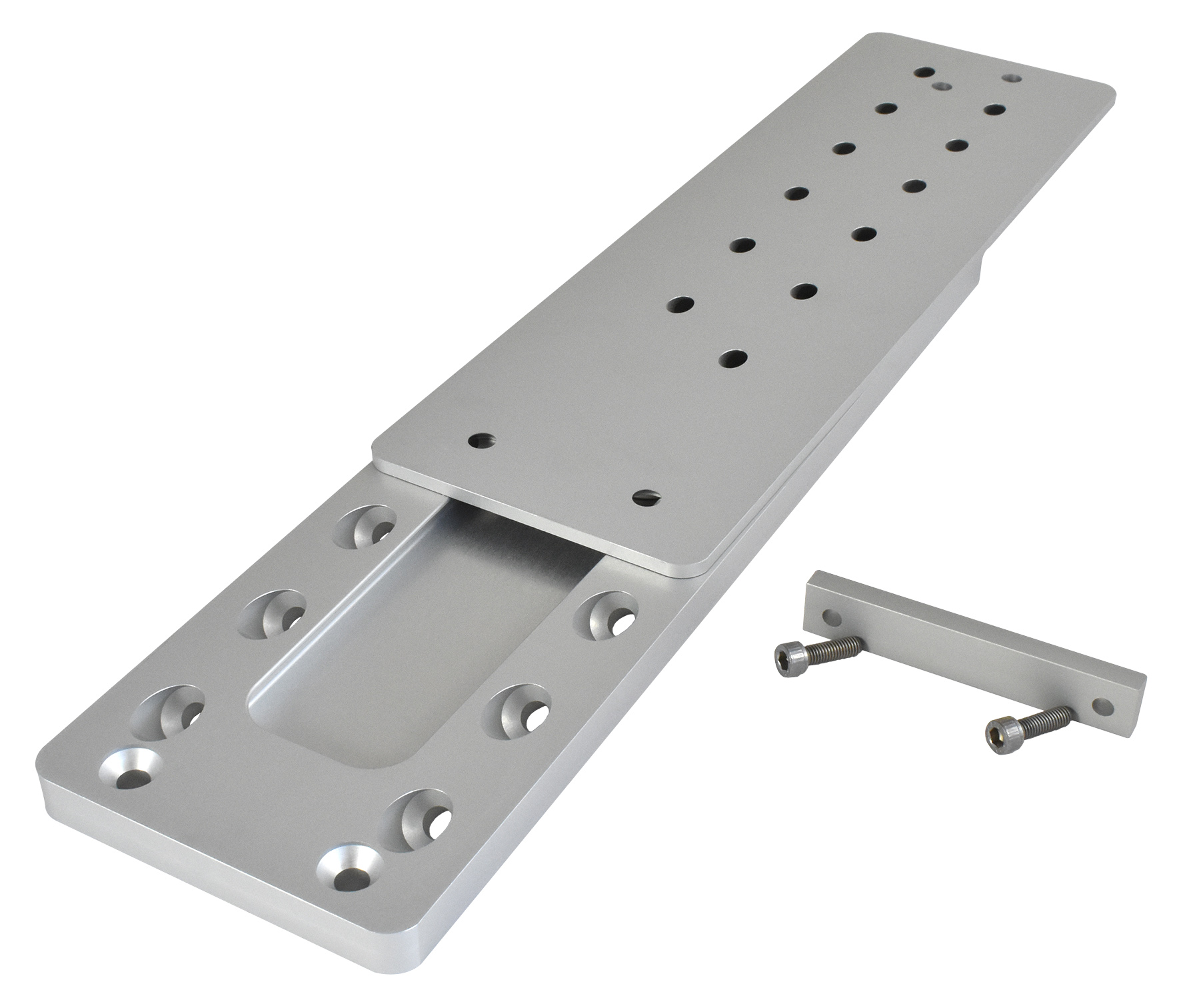

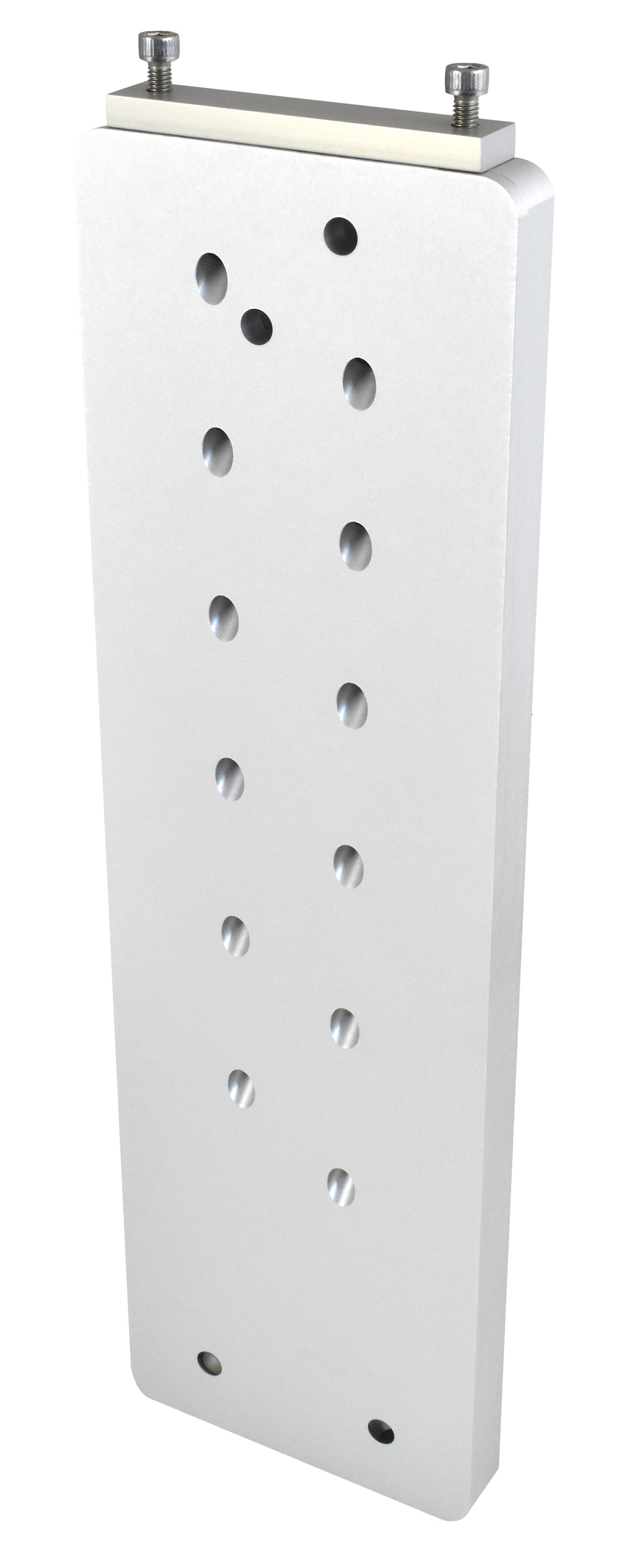

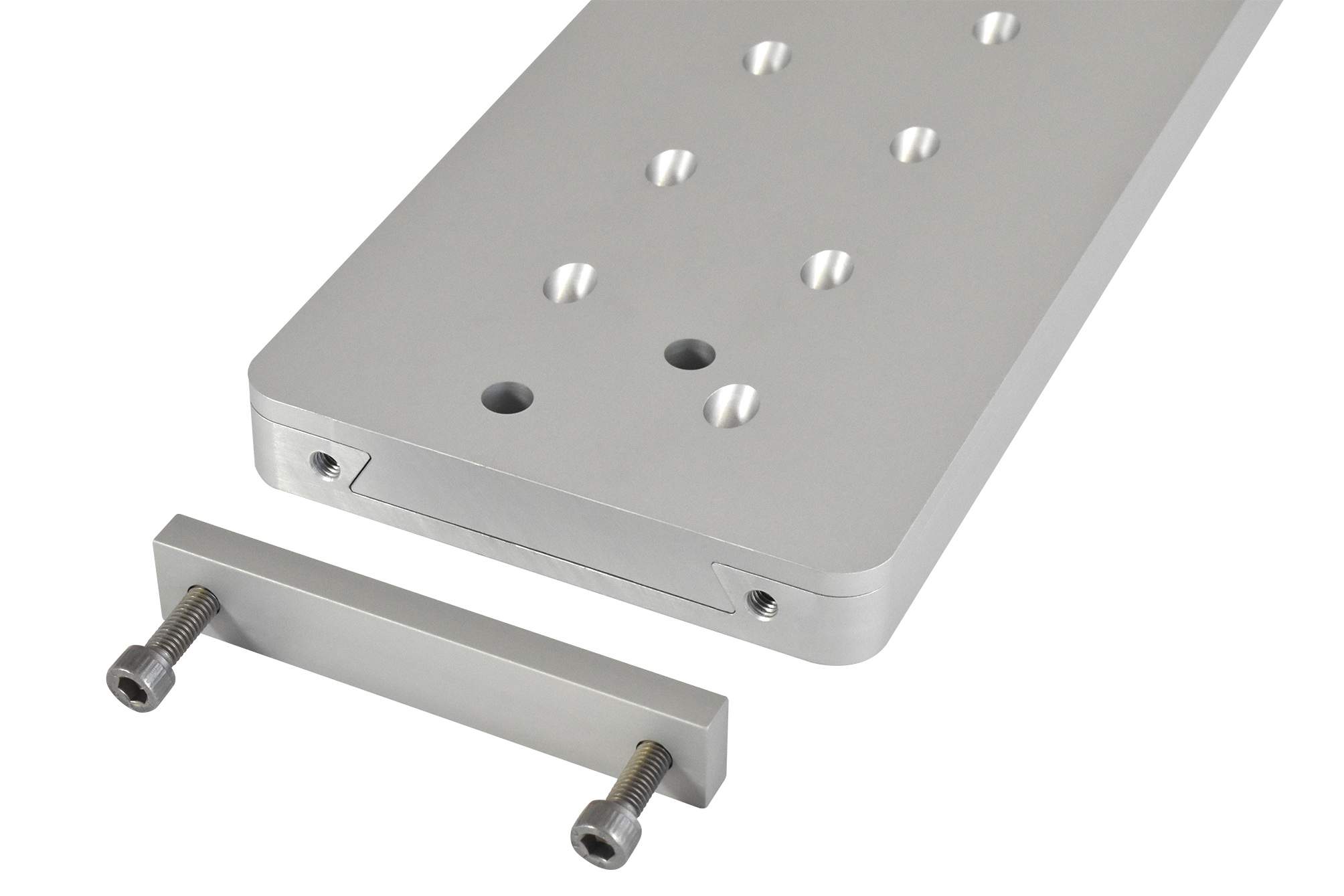

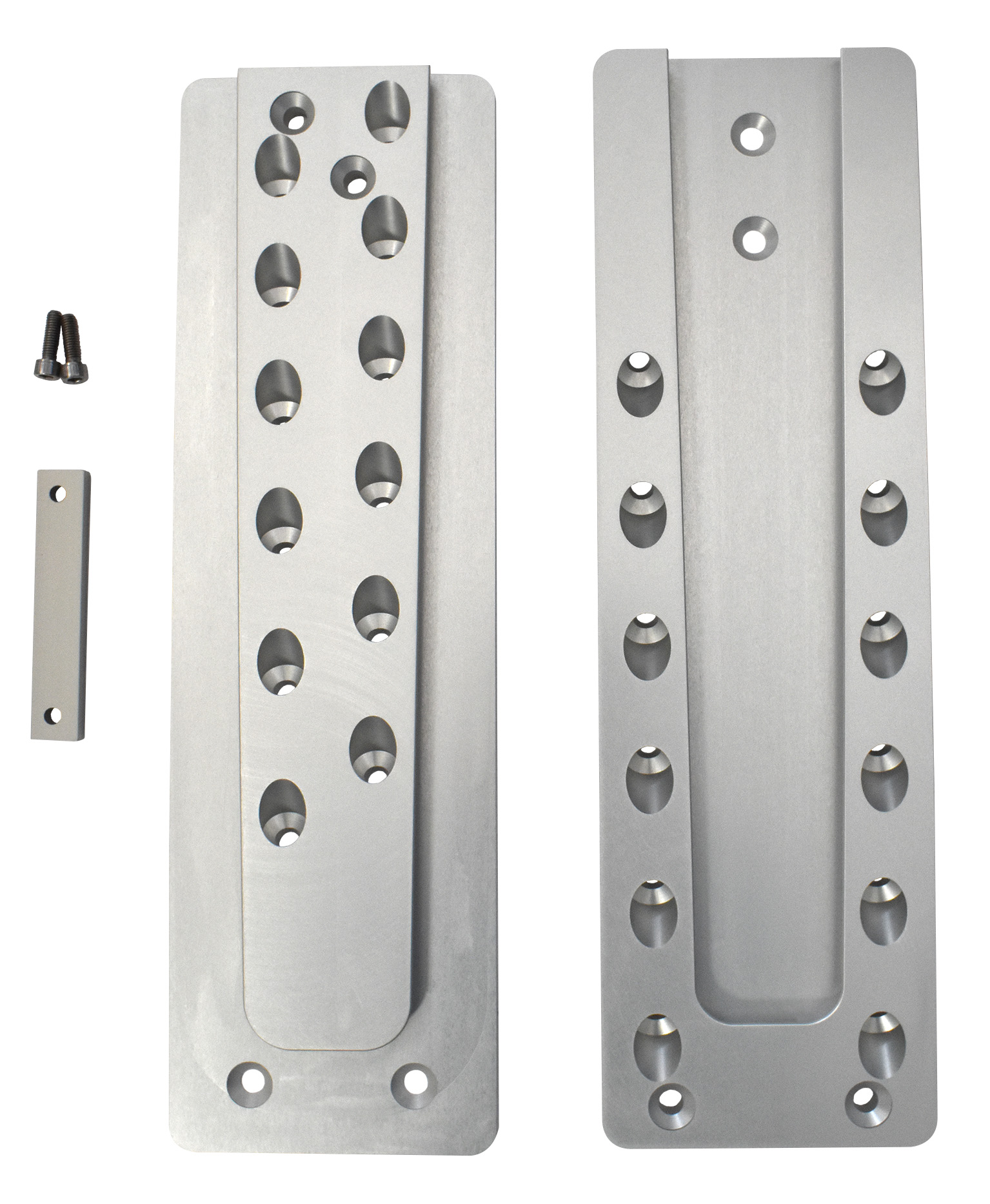

Heavy-duty connector for wood-wood connection Dimension: 120 x 400 x 20 mm
Technical specifications:
| Dimensions W x H x D (mm) | 120 x 400 x 20 |
| Number of screws | 32 |
| Usable screw size | Ø8 x 100 - 240 mm |
| Characteristic load-bearing capacity* in the insertion direction with screws Ø8x160mm | 150,86 kN |
| Minimum timber dimensions with screws Ø8x160mm on the main beam | 170 x 420 mm |
| Characteristic load-bearing capacity* in the insertion direction with screws Ø8x240mm | 218,17 kN |
| Minimum timber dimensions with screws Ø8x160mm on the secondary beam | 140 x 420 mm |
| VPE | 4 |
Product information
The new disposed inclined drilled holes as well as the possibility of using different screws lengths guarantee the adaptability to the small timber cross-sections too.
Technical data:
| Effektive Gewindelänge (ℓef) | Mindestquerschnitt (mm) | Charakteristische Tragfähigkeit Rk (kN) | ||||||||
| Brettschichtholz GL24h (ρk = 385 kg/m³) | ||||||||||
| HT | NT | NT | HT | |||||||
| Schrauben | ℓef (mm) | Höhe | Breite | Höhe | Breite | F2,Rk | F3,Rk | F4,Rk | F4,Rk | F1,Rk |
| 8x160 mm | 150 mm | 420 | 160 | 420 | 140 | 150,86 | 36,40 | 54,15 | 85,62 | 52,15 |
| 8x180 mm | 170 mm | 450 | 180 | 450 | 140 | 168,85 | 36,40 | 54,15 | 85,62 | 58,37 |
| 8x200 mm | 190 mm | 480 | 200 | 480 | 140 | 186,63 | 36,40 | 54,15 | 85,62 | 64,52 |
| 8x220 mm | 210 mm | 510 | 220 | 510 | 140 | 204,22 | 36,40 | 54,15 | 85,62 | 70,60 |
| 8x240 mm | 230 mm | 540 | 240 | 540 | 140 | 218,17 | 36,40 | 54,15 | 85,62 | 75,42 |
* further static values can be found in our static logbook or the ETA 15/0187
Mounting instructions
Skip product gallery
Accesoires
50934.2000
Grooving cutter
These combinations are essential for a optimum milling grove. The exact milling texture for the respective connector is obtained. Therefore a quick installation of our connectors without an additional calibration is feasible.
In combination with our milling templates (page 115) you can also mill in the upper parts of our post bases.
58396.0000
Accessories for the milling device
Collet holder without collet
Appropriate for milling device Scheer HM 14.
58400.0000
Milling and assembly templates for all connector sizes of HVP series.
The flexible and easily adjustable templates enable a quick adjustment of connector width.
Following correct adjustment, milling and assembly works can begin without any further adaptation being required.
